# Chaos game

Categories: generativepy generative art

A *chaos game* is a simple system for generating an approximation to a particular fractal. It relies on a collection of rules that transform one point `(x, y)`

into a different point `(x', y')`

.

The game proceeds like this:

- Pick an initial point
`(x, y)`

- Choose one of the rules at random to generate
`(x', y')`

- Replace the current
`(x, y)`

with the transformed`(x', y')`

- Mark the pixel at
`(x, y)`

- Repeat from step 2, for a fixed number of iterations. picking
`P`

at random each time

## Creating a Sierpinski triangle

Creating a Sierpinski triangle is quite simple using this method.

We first define 3 points, `A`

, `B`

and `C`

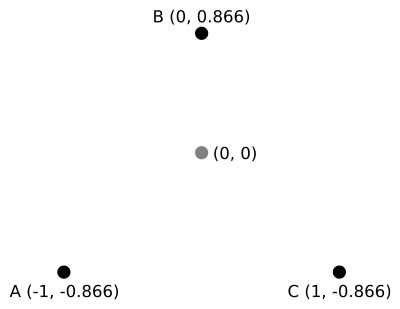

that make up the corners of the triangle. For an equilateral triangle with sides of length 2, centred on the origin, the coordinates of the vertices are shown below (0.866 is the sine of 60 degrees):

The process then works as follows:

- Pick an initial point
`(x, y)`

that is within the triangle - (0, 0) works well - Choose one of the points
`A`

,`B`

or`C`

at random.`(x', y')`

is the point halfway between the existing`(x, y)`

and the chosen vertex - Replace the current
`(x, y)`

with the transformed`(x', y')`

- Mark the pixel at
`(x, y)`

- Repeat from step 2, for a fixed number of iterations

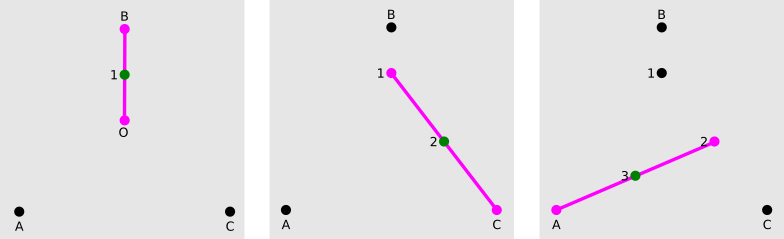

Here are the first three iterations:

**Iteration 1** - let's suppose the first randomly selected vertex is `B`

. We can then draw point 1 halfway between `B`

and the initial point (0, 0).

**Iteration 2** - suppose the next randomly selected vertex is `C`

. We can then draw point 2 halfway between `C`

and the previous point 1.

**Iteration 3** - suppose the next randomly selected vertex is `A`

. We can then draw point 3 halfway between `A`

and the previous point 2.And so on...

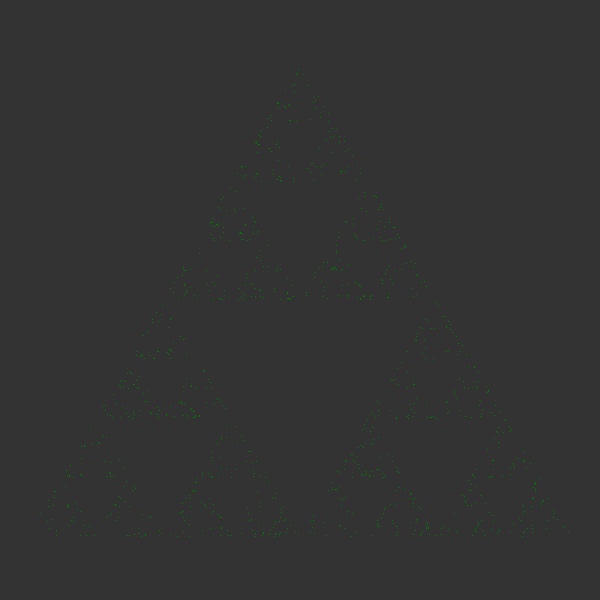

At this point, it is easier to do things in code. After 1000 iterations things are just beginning to take shape:

If you continue for 1,000,000 iterations you get something resembling a Sierpinski triangle:

Note that this is only an approximation to the triangle. But this technique can be used to create some very interesting patterns.

## The code

Since this code works by setting individual pixels, rather than drawing shapes, we use the `make_bitmap`

function of generativepy. This function doesn't use Pycairo, instead it uses PIL, a Python bitmap image library.

Here is the code:

from generativepy.bitmap import make_bitmap, Scaler from generativepy.color import Color from PIL import ImageDraw import math import random SIN60 = math.sin(math.pi/3) SIZE = 600 RANGE = 1.1 ITERATIONS = 1000000 VERTICES = [(-1, SIN60), (0, -SIN60), (1, SIN60)] def paint(image, pixel_width, pixel_height, frame_no, frame_count): scaler = Scaler(pixel_width, pixel_height, width=RANGE*2, height=RANGE*2, startx=-RANGE, starty=-RANGE) draw = ImageDraw.Draw(image) draw.rectangle((0, 0, pixel_width, pixel_height), fill=Color(0.2).as_rgbstr()) x, y = 0, 0 color = Color('green').as_rgbstr() for i in range(ITERATIONS): vertex = random.choice(VERTICES) x = (x + vertex[0])/2 y = (y + vertex[1])/2 u, v = scaler.user_to_device(x, y) draw.point((u, v), color) make_bitmap("chaos-game-sierpinski.png", paint, SIZE, SIZE)

Taking the `make_bitmap`

call first, we create a square image 600 pixels square. `make_bitmap`

calls our `paint`

function. It passes an empty PIL image of the correct size.

In the paint function we create a `Scaler`

objects. The scaler object lets us convert between pixel positions and *user coordinates*. We set the usr coordinates to extend from -1.1 to +1.1 is both directions, so our triangle will fit nicely. User coordinates allow us to work in our chosen dimensions regardless of the actual pixel size of the image.

In order to be able to draw on the image we create a PIL `Draw`

object. We also draw an initial rectangle that covers the entire image, and fill it with a dark grey (grey value 0.2) that serves as the image background.

Now the housekeeping is out of the way, the first part of the `paint`

function sets things up:

x, y = 0, 0 color = Color('green').as_rgbstr()

Our initial point `(x, y)`

is `(0, 0)`

.

We create a green colour to draw the image pixels. PIL uses strings to specify colours. The `as_rgbstr`

function converts a colour to a string of the form `rgb(0, 128, 0)`

which is exactly what PIL needs.

Next we have the main loop:

for i in range(ITERATIONS): vertex = random.choice(VERTICES) x = (x + vertex[0])/2 y = (y + vertex[1])/2 u, v = scaler.user_to_device(x, y) draw.point((u, v), color)

We iterate 1,000,000 times. Each time through we:

- pick a random vertex
- calculate the point halfway between the chosen vertex and the previous point
`(x, y)`

- convert the point (x, y), which is in user coordinates into a pixel position (u, v). The function
`scaler.user_to_device`

does this. The result is a pair of integer values that select a particular pixel - We set the pixel at
`(u, v)`

to green using the`point`

function of the`draw`

object we created earlier. The`point`

function sets a single pixel.

## Chaos game with a square

You might wonder what sort of fractal might we get if we used a square instead of a triangle?

It is easy enough to try, we could simply replace `VERTICES`

with the four corners of a square. Unfortunately the results are disappointing. Instead of a fractal, you get a square full of random noise.

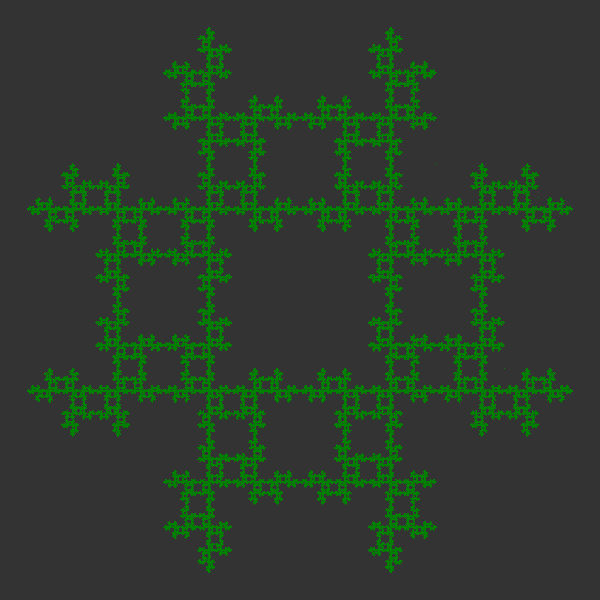

This improve if you add *exclusions*. For example, we could make an additional rule that when you pick a random vertex, it isn't allowed to be the same one you used last time. So if you used vertex `B`

previously, you must choose between `A`

, `C`

or `D`

next time. Here is the result:

And here is the Python code:

from generativepy.bitmap import make_bitmap, Scaler from generativepy.color import Color from PIL import ImageDraw import math import random SIN60 = math.sin(math.pi/3) COS60 = math.cos(math.pi/3) SIZE = 600 RANGE = 1.1 ITERATIONS = 1000000 VERTICES = [(-1, -1), (-1, 1), (1, 1), (1, -1)] ALLOWED = [0, 1, 1, 1] COUNT = len(VERTICES) def paint(image, pixel_width, pixel_height, frame_no, frame_count): scaler = Scaler(pixel_width, pixel_height, width=RANGE*2, height=RANGE*2, startx=-RANGE, starty=-RANGE) draw = ImageDraw.Draw(image) draw.rectangle((0, 0, pixel_width, pixel_height), fill=Color(0.2).as_rgbstr()) x, y = 0, 0 oldn = 0 color = Color('green').as_rgbstr() for i in range(ITERATIONS): n = random.randrange(COUNT) diff = (n - oldn) % COUNT if ALLOWED[diff]: vertex = VERTICES[n] x = (x + vertex[0])/2 y = (y + vertex[1])/2 u, v = scaler.user_to_device(x, y) draw.point((u, v), color) oldn = n make_bitmap("chaos-game-square.png", paint, SIZE, SIZE)

Here we have changed the `VERTICES`

to be the four corners of a square. The `ALLOWED`

list indicates which vertices are permitted. The list starts at the previous vertex and cycles round. So for example if the previous vertex was `B`

, the allowed list `[0, 1, 1, 1]`

would refer to vertices `B`

, `C`

, `D`

, `A`

. So the previous vertex `B`

would be excluded, all others allowed.

Here is the main loop:

for i in range(ITERATIONS): n = random.randrange(COUNT) diff = (n - oldn) % COUNT if ALLOWED[diff]: vertex = VERTICES[n] x = (x + vertex[0])/2 y = (y + vertex[1])/2 u, v = scaler.user_to_device(x, y) draw.point((u, v), color) oldn = n

In this case we pick a number `n`

in the range 0 to `COUNT-1`

(`COUNT`

is the number of vertices). This represents the potential next vertex.

We calculate `diff`

as the difference between `n`

and the previous value, `oldn`

, modulo `COUNT`

. This serves as the index into the `ALLOWED`

list.

We check if the current vertex is allowed. If not, we skip this iteration. If the vertex is allowed, we calculate the new vertex as before.

## Chaos game with a hexagon

We can change the square to a hexagon with the following code modifications:

SIN60 = math.sin(math.pi/3) COS60 = math.cos(math.pi/3) VERTICES = [(-1, 0), (-COS60, SIN60), (COS60, SIN60), (1, 0), (COS60, -SIN60), (-COS60, -SIN60)] ALLOWED = [0, 1, 0, 1, 0, 1]

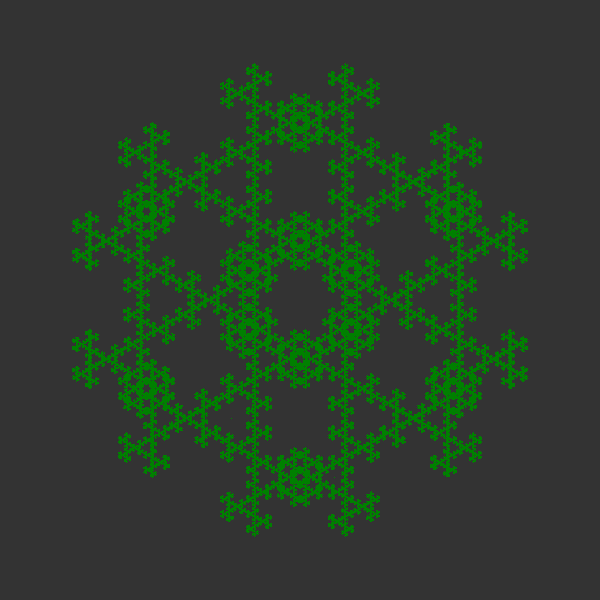

The other code from the square example is unchanged. This uses a hexagon shape and excludes the same vertex from being used twice. Here is the result:

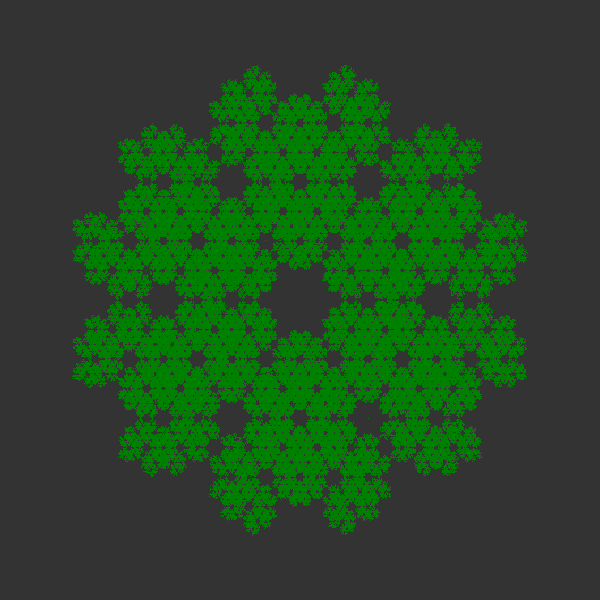

If we use a different `ALLOWED`

list `[0, 1, 0, 1, 0, 1]`

, then after using a particular vertex, the next vertex will have to be either the opposite or one of the two adjacent vertices. This is the result:

You can try other shapes and allowed lists - you can also try irregular polygons.
